Plancofix Line
JP50177| Mechanical data | |
|---|---|
| Pump | Horizontal, single-stage |
| Mounted circuit | Yes |
| Pressure outlet | 1" IG |
| Weight | 4.5 kg |
| Electrical data | |
|---|---|
| Voltage | 1/N/PE~230 V |
| Motor rating P1 | 30 W |
| Current | 0.2 A |
| Power line | 5m H05VV-F |
| Wires | 3G0,75 GR |
| Winding thermostat | Yes |
| Motor protection | Installed in the winding |
| Plug | Without |
| Performance | |||
|---|---|---|---|
| Delivery head H [m] | 0.5 | 1 | 1.3 |
| Flow rate Q [l/min] | 26 | 16 | 10 |
Specifications can be changed without notice. Performance subject to ISO 9906 tolerances.

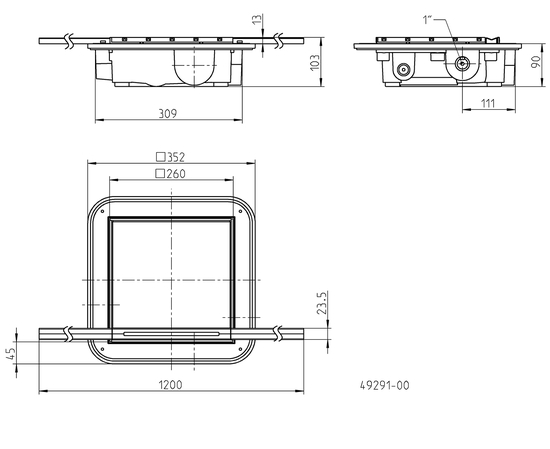

Dimensions Plancofix Line (mm)
Example of installation Plancofix Line
