Submersible drainage pumps
Easyfix 50
Plug-and-play solution for time-saving installation of submersible drainage pumps with the guide rail system GR 50
- Quick and easy installation
- Easyfix 50 Duo incl. control unit and alarm
- Ready to connect
- Guide rail system pre-assembled on base plate
- Compact design allows use in small chamber: 600x300 mm for single units / 600x600 mm for duplex units
With the Easyfix 50 Single or Easyfix 50 Duo installation sets, drainage pumps can be installed as single or duplex pump stations in existing sumps inside or and outside buildings with minimum (time) effort.
The sets are ready to use in and all necessary components are already pre-assembled on a base plate (H=30 mm) up to the connection to the pressure pipe.
In addition to the mechanical components, the Easyfix 50 Duo also includes a control unit. This control unit regulates the alternating operation of the two pumps and also ensures alarm messages and peak load operation. The level sensor responsible for this is connected to the control unit with a 10 m cable.
Normal operation of the pumps is ensured by their attached float switches, so no external level control such as submersible ball float switches are required.
The US 75 to 105 ES can be connected to both Easyfix sets. With the reduction socket (accessory), pumps with a 1 1/2" pressure outlet (US 62 to 102 ES and US 73 and 103 ES) can also be connected. The pumps are not included in the scope of supply.
The special float switch for low switching points and the AG3 or AG10 alarm unit can be used with the Easyfix 50 Single (pump accessory).
Easyfix 50 Single: Guide rail system on base plate, pressure pipe with check valve (completely pre-assembled), guide rail claw, flexible connection and clamps.
Easyfix 50 Duo: 2x guide rail system system on base plate, pressure pipes with check valves (completely pre-assembled), guide rail claws, flexible connection, clamps and control unit (1.5 m cable).
Specifications can be changed without notice. Performance subject to ISO 9906 tolerances.
The minimum flow velocity in the pressure piping must be 0.7 m/s according to EN 12056.

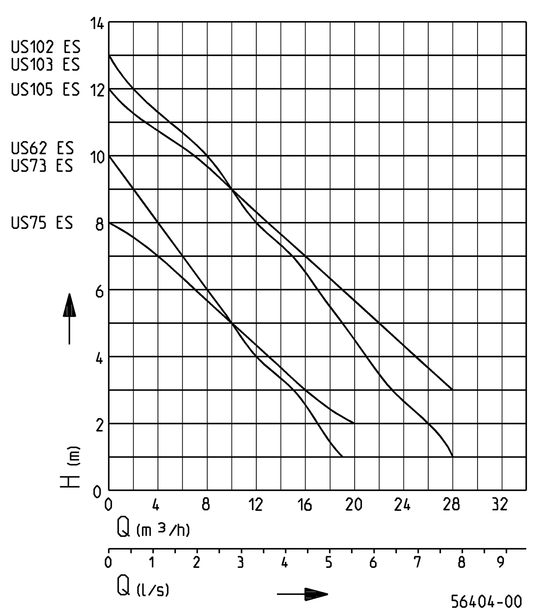

This data is represented in the performance curve as a limit of application.
2 results
| Type | Code No. |
|---|---|
JP51001 | |
JP51000 |
