Easyfix 50 Duo
JP51000| Possible pumps |
|---|
US 75 ES |
US 105 ES |
US 62 ES |
US 102 ES |
US 73 ES |
US 103 ES |
| Mechanical data | |
|---|---|
| Weight | 23 kg |
Specifications can be changed without notice. Performance subject to ISO 9906 tolerances.
The minimum flow velocity in the pressure piping must be 0.7 m/s according to EN 12056.
This data is represented in the performance curve as a limit of application.

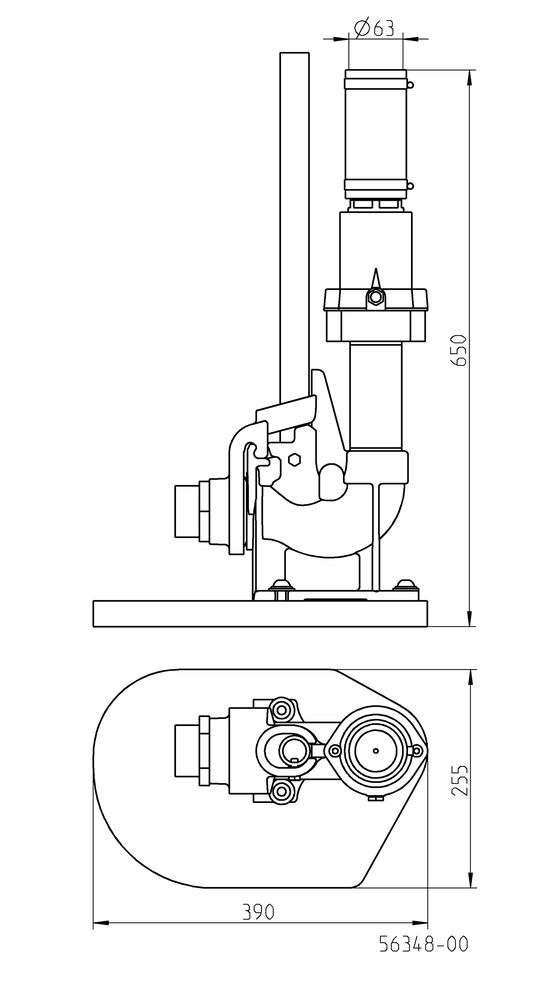

Dimensions Easyfix 50 Single (mm)

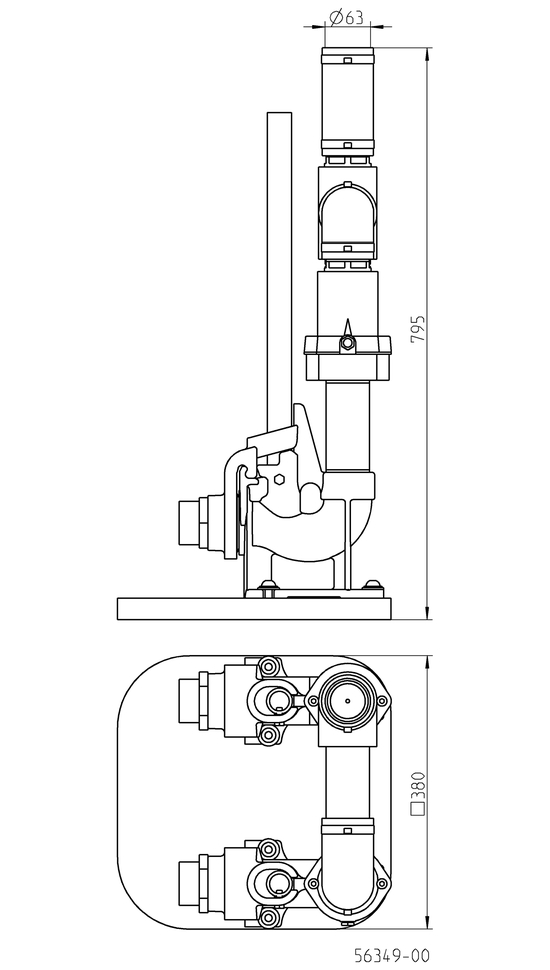

Dimensions Easyfix 32 Duo (mm)

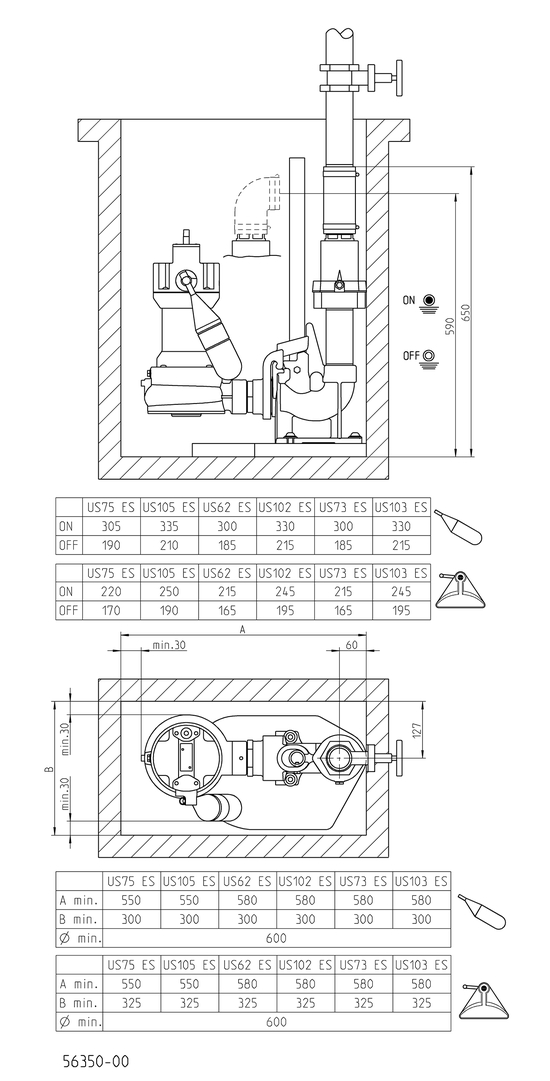

Dimensions and switching points Easyfix 32 Single (mm)

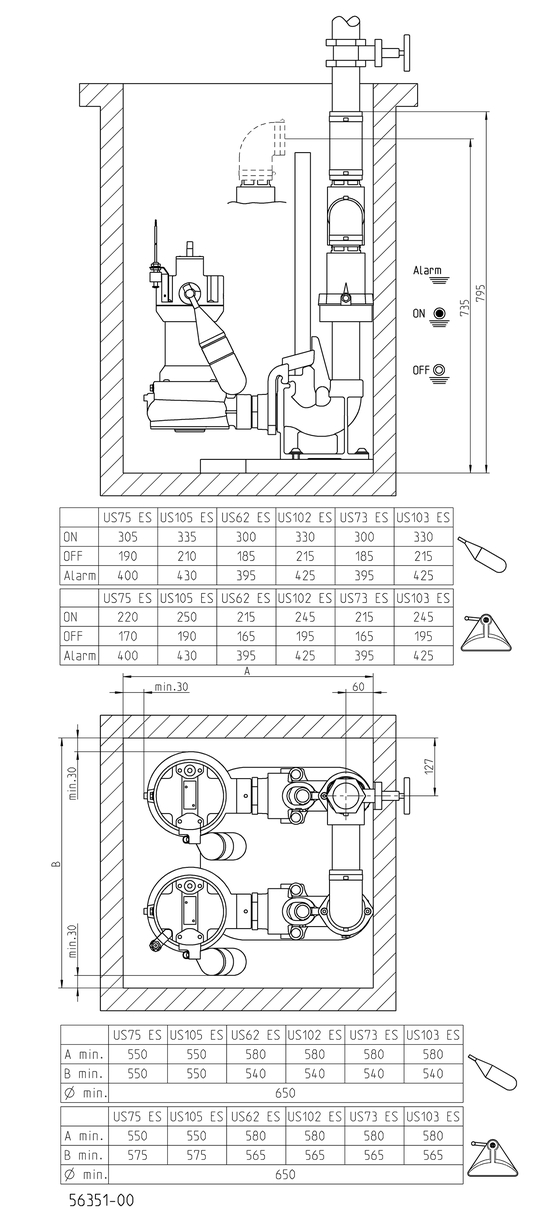

Dimensions and switching points Easyfix 50 Duo (mm)

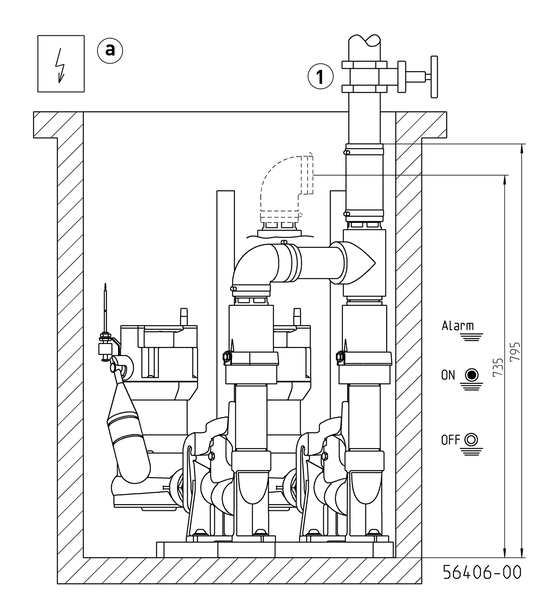

Example of installation Easyfix 50 Duo
Example of installation Easyfix 50 Duo with special float
| Mechanical accessory | ||||||
|---|---|---|---|---|---|---|
| Code No. | ||||||
 | Stop valve | |||||
| brass, 2“ (DN 50), PN 16 | 140x70 (HxB) | JP44787 | ||||
| Reducing socket | ||||||
| 1½“–2“ for mounting pumps with 11/2" discharge | JP48069 | |||||
| Chain | |||||
| certified, 2.5 m, 320 kg, 5 rings (EN 818 mod.) | JP45901 | |||||
| certified, 5.0 m, 320 kg, 8 rings (EN 818 mod.) | JP45902 | |||||
| certified, 7.5 m, 320 kg, 11 rings (EN 818 mod.) | JP47365 | |||||
| Webbing | ||||||
| with shackle | JP45168 | |||||
| Strainer base | ||||||
| 10 mm free passage | JP45957 | |||||
| Electrical accessory | ||||||
|---|---|---|---|---|---|---|
| Code No. | ||||||
| Rechargeable battery | |||||
| 9 V, for mains independent alarm | JP44850 | |||||
