The particular challenges faced by places on this peninsula lie in the extreme fluctuations in the amounts of wastewater that occur. During the holiday season, the volume of wastewater to be disposed can increase to as much as seven times the usual amount. The ground-water level is also very high, which means that normal gravity sewers are not feasible. This is a case for pressure drainage systems.
Peninsula Darss in the baltic sea
Druckentwässerung mit PKS Schächten und MultiCut Schneidradpumpen

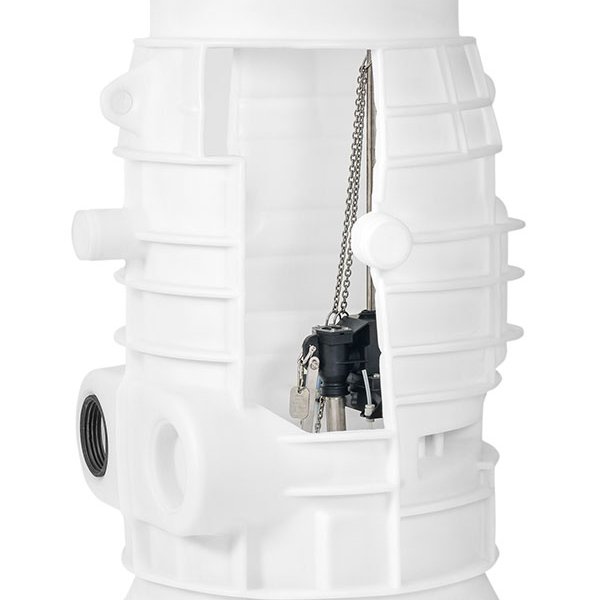

Kunststoffschacht zur Druckentwässerung
Pump technology used for pressure drainage:
1.600 x PKS-B 800 sumps
Pumptype: MulitCut sewage pumps 25 - 75/2 M
Flow rate: Qmax = 17 m³/h (MultiCut 75/2 M) / Delivery head: 48 m
Flow rate: Qmax = 17 m³/h (MultiCut 25/2 M) / Delivery head: 21 m
The pressure drainage system on the Darß in its complete scope:
Wastewater generation: Seasonal fluctuation 4,000 - 35,000 inhabitants
3 main pumping stations, 1 intermediate pumping station
1,015 pumping stations
13 pressure pipe flushing stations
92 km of PE-HD PN 10, DN 50-DN 350 wastewater pressure pipes
26 km gravity pipelines DN 150/DN 200
110 km electric cable
130 km information cable
